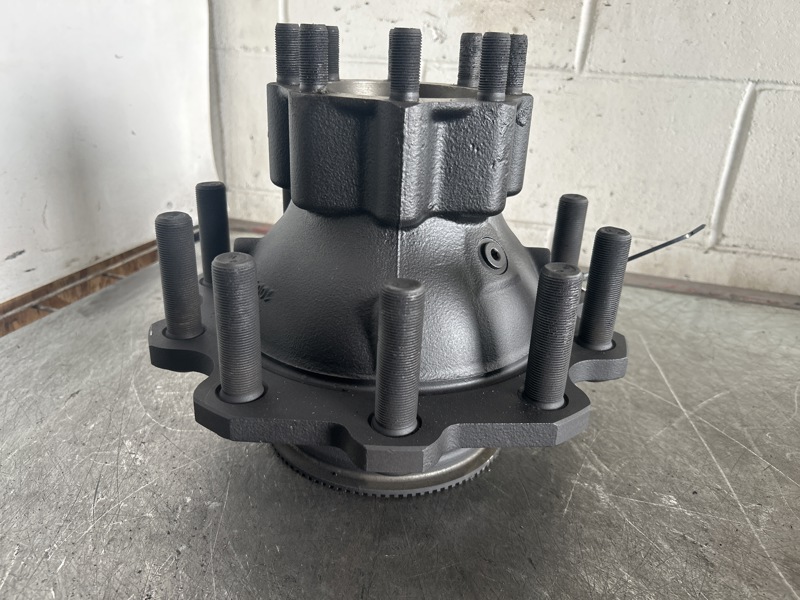

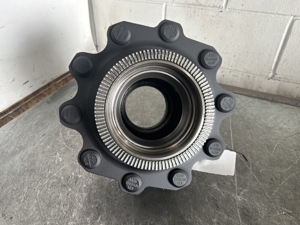

ConMet Hub
ConMet Hub
PRICE:
$157.00
PRICE:
$157.00
Tag No.
305-29425
Tag No.
305-29425
Part No.
10041051
Part No.
10041051
Condition
Used
Condition
Used
Year
2018
Year
2018
Axle Position
Rear
Axle Position
Rear
Wheel Stud Thread Size
22MM
Wheel Stud Thread Size
22MM
Axle Stud Thread Size
5/8"-11UNC / 5/8"-18UNF
Axle Stud Thread Size
5/8"-11UNC / 5/8"-18UNF
ABS
Yes
ABS
Yes
Want to save this item for later? Create an account or login to add this item to your wish list!
Related Items
ConMet Hub
Price:
$157.00
$157.00
View Detail >
Tag No.
305-29424
Tag No.
305-29424
Part No.
10041051
Part No.
10041051
Axle Position
Rear
Axle Position
Rear
Material
Cast Iron
Material
Cast Iron
Assembly Type
Conventional
Assembly Type
Conventional
Barrel Type
N/A
Barrel Type
N/A
Wheel Stud Thread Size
22MM
Wheel Stud Thread Size
22MM
# of Wheel Studs
10
# of Wheel Studs
10
Wheel Stud Standout
3.06"
Wheel Stud Standout
3.06"
Axle Stud Thread Size
5/8"-11UNC / 5/8"-18UNF
Axle Stud Thread Size
5/8"-11UNC / 5/8"-18UNF
# of Axle Studs/Holes
8
# of Axle Studs/Holes
8
ABS
Yes
ABS
Yes
Uses ABS Ring #
10023757
Uses ABS Ring #
10023757
Thread Direction
RH
Thread Direction
RH
Casting Number
10041051
Casting Number
10041051
Uses Inner Bearing
47686
Uses Inner Bearing
47686
Uses Inner Race
47620
Uses Inner Race
47620
Uses Outer Bearing
39590
Uses Outer Bearing
39590
Uses Outer Race
39520
Uses Outer Race
39520
Uses Seal
38780
Uses Seal
38780

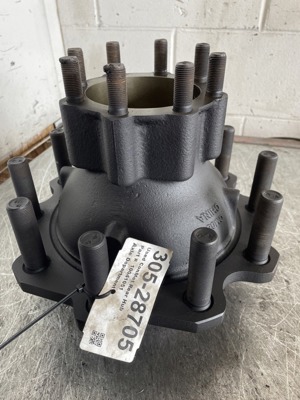

ConMet Hub
Price:
$157.00
$157.00
View Detail >
Tag No.
305-28705
Tag No.
305-28705
Part No.
10041051
Part No.
10041051
Axle Position
Rear
Axle Position
Rear
Material
Cast Iron
Material
Cast Iron
Assembly Type
Conventional
Assembly Type
Conventional
Barrel Type
N/A
Barrel Type
N/A
Wheel Stud Thread Size
22MM
Wheel Stud Thread Size
22MM
# of Wheel Studs
10
# of Wheel Studs
10
Wheel Stud Standout
3.06"
Wheel Stud Standout
3.06"
Axle Stud Thread Size
5/8"-11UNC / 5/8"-18UNF
Axle Stud Thread Size
5/8"-11UNC / 5/8"-18UNF
# of Axle Studs/Holes
8
# of Axle Studs/Holes
8
ABS
Yes
ABS
Yes
Uses ABS Ring #
10023757
Uses ABS Ring #
10023757
Thread Direction
RH
Thread Direction
RH
Casting Number
10041051
Casting Number
10041051
Uses Inner Bearing
47686
Uses Inner Bearing
47686
Uses Inner Race
47620
Uses Inner Race
47620
Uses Outer Bearing
39590
Uses Outer Bearing
39590
Uses Outer Race
39520
Uses Outer Race
39520
Uses Seal
38780
Uses Seal
38780
ConMet PreSet Hub Assembly Hub
Price:
$175.00
$175.00
View Detail >
Tag No.
305-26016
Tag No.
305-26016
Part No.
10008699
Part No.
10008699
Axle Position
Rear
Axle Position
Rear
Material
Cast Iron
Material
Cast Iron
Assembly Type
Preset
Assembly Type
Preset
Barrel Type
Long
Barrel Type
Long
Wheel Stud Thread Size
22MM
Wheel Stud Thread Size
22MM
# of Wheel Studs
10
# of Wheel Studs
10
Wheel Stud Standout
3.06
Wheel Stud Standout
3.06
Axle Stud Thread Size
5/8"
Axle Stud Thread Size
5/8"
# of Axle Studs/Holes
8
# of Axle Studs/Holes
8
ABS
Yes
ABS
Yes
Uses ABS Ring #
103705
Uses ABS Ring #
103705
Thread Direction
RH
Thread Direction
RH
Casting Number
10001387
Casting Number
10001387
Uses Inner Bearing
594A
Uses Inner Bearing
594A
Uses Inner Race
592A
Uses Inner Race
592A
Uses Outer Bearing
572
Uses Outer Bearing
572
Uses Outer Race
580
Uses Outer Race
580
Uses Seal
10045887
Uses Seal
10045887
ConMet PreSet Hub Assembly Hub
Price:
$175.00
$175.00
View Detail >
Tag No.
305-26015
Tag No.
305-26015
Part No.
10008699
Part No.
10008699
Axle Position
Rear
Axle Position
Rear
Material
Cast Iron
Material
Cast Iron
Assembly Type
Preset
Assembly Type
Preset
Barrel Type
Long
Barrel Type
Long
Wheel Stud Thread Size
22MM
Wheel Stud Thread Size
22MM
# of Wheel Studs
10
# of Wheel Studs
10
Wheel Stud Standout
3.06
Wheel Stud Standout
3.06
Axle Stud Thread Size
5/8"
Axle Stud Thread Size
5/8"
# of Axle Studs/Holes
8
# of Axle Studs/Holes
8
ABS
Yes
ABS
Yes
Uses ABS Ring #
103705
Uses ABS Ring #
103705
Thread Direction
RH
Thread Direction
RH
Casting Number
10001387
Casting Number
10001387
Uses Inner Bearing
594A
Uses Inner Bearing
594A
Uses Inner Race
592A
Uses Inner Race
592A
Uses Outer Bearing
572
Uses Outer Bearing
572
Uses Outer Race
580
Uses Outer Race
580
Uses Seal
10045887
Uses Seal
10045887
ConMet PreSet Hub Assembly Hub
Price:
$175.00
$175.00
View Detail >
Tag No.
305-26014
Tag No.
305-26014
Part No.
10008699
Part No.
10008699
Axle Position
Rear
Axle Position
Rear
Material
Cast Iron
Material
Cast Iron
Assembly Type
Preset
Assembly Type
Preset
Barrel Type
Long
Barrel Type
Long
Wheel Stud Thread Size
22MM
Wheel Stud Thread Size
22MM
# of Wheel Studs
10
# of Wheel Studs
10
Wheel Stud Standout
3.06
Wheel Stud Standout
3.06
Axle Stud Thread Size
5/8"
Axle Stud Thread Size
5/8"
# of Axle Studs/Holes
8
# of Axle Studs/Holes
8
ABS
Yes
ABS
Yes
Uses ABS Ring #
103705
Uses ABS Ring #
103705
Thread Direction
RH
Thread Direction
RH
Casting Number
10001387
Casting Number
10001387
Uses Inner Bearing
594A
Uses Inner Bearing
594A
Uses Inner Race
592A
Uses Inner Race
592A
Uses Outer Bearing
572
Uses Outer Bearing
572
Uses Outer Race
580
Uses Outer Race
580
Uses Seal
10045887
Uses Seal
10045887
